Aluminum

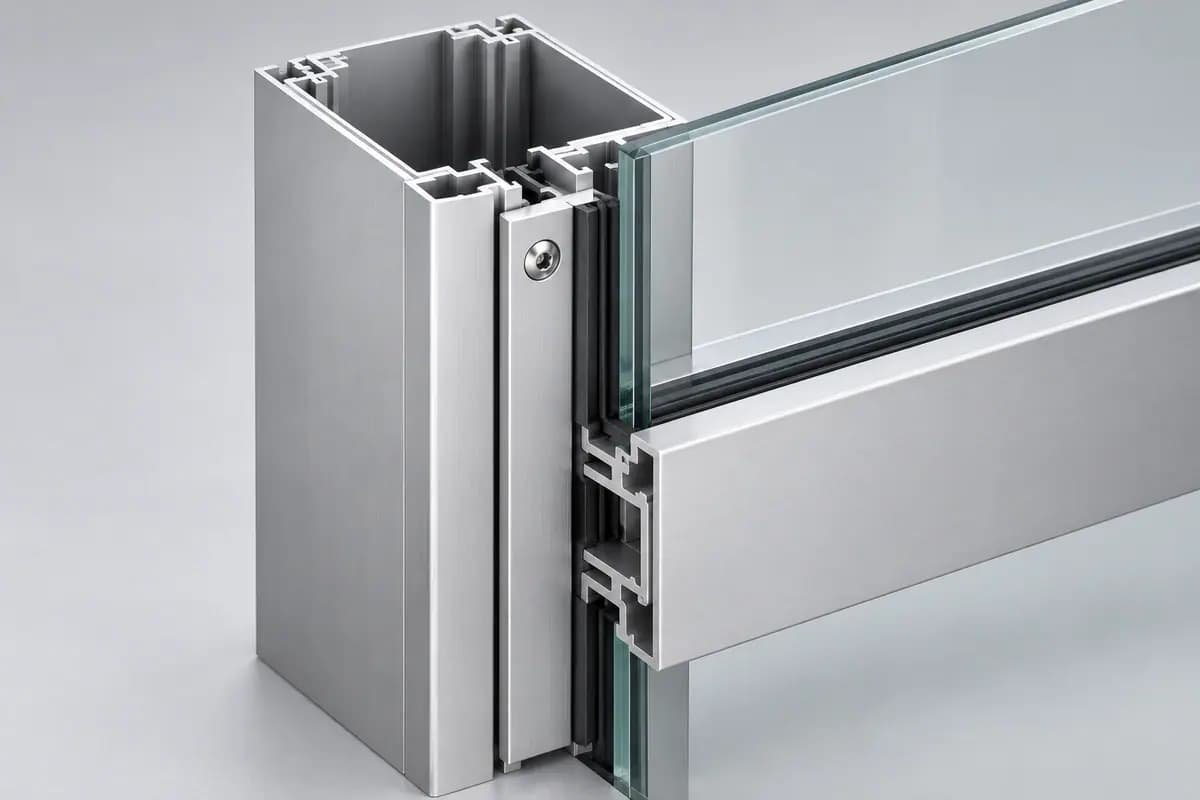

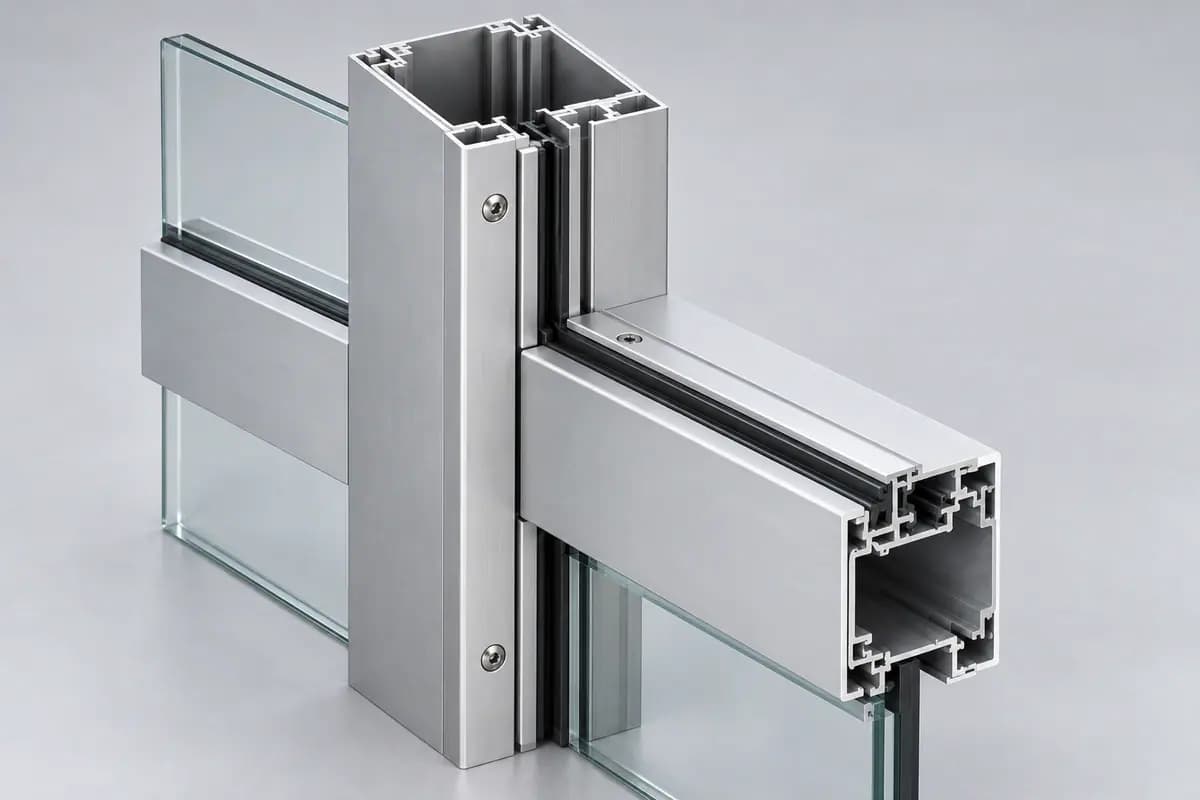

Aluminum Curtain Wall Framing

Architectural aluminum curtain wall extrusion profiles for stick-built and unitized glass facade systems.

Specifications for Aluminum Curtain Wall Framing
Price bandLME+1000$ - LME+2500$
Minimum orderBy project / profile schedule
Lead time15-30 days by production schedule
System TypeStick curtain wall, semi-unitized, and unitized facade framing
ComponentsStructural vertical mullions, horizontal transoms, pressure plates, snap-on cover caps
Alloy & TemperEN AW-6063 / 6061 T6 high-tensile architectural alloy
Finishes AvailablePVDF 2/3-coat fluorocarbon paint, Anodized 20-25 micron, Electrophoresis, Powder coat
Glazing CompatibilityEngineered for double-glazed and triple-glazed insulated glass units (IGU)
Pricing BasisLME index + extrusion processing premium — confirmed per project drawings
PackagingProtective surface tape, inter-wrapped bundles, seaworthy export wooden crates
Shipping & LogisticsFOB Bandar Abbas; 40ft high-cube containers or open-top
OriginIran

Packaging and quality inspection

  • Powder Coating Colors for Aluminum Profiles: Anodized Aluminum Profile Colors: Wooden Aluminum Profile Colors: 3 Do you provide fitting for curtain wall framings? Yes. We offer every kind of fittings for curtain wall system which are produced in Iran.. The list includes: Curtain Wall System Fixers Curtain Wall System Brackets Curtain Wall System Steel reinforcements Hinges Please be informed we offer complete package of fittings to install and maintain a curtain wall system. below you can preview some of them:

Export Logistics & Procurement Terms

Supplier & Origin: Request the proposed producer, origin evidence, and available quality documents with your RFQ. Supplier identity and inspection arrangements are confirmed for each quotation.
Minimum Order Quantity (MOQ): State your required quantity and shipment unit. The producer's minimum and any consolidation option must be confirmed with the quotation.
Packaging & Cargo Protection: Specify the packing and handling requirements for your destination. Confirm crate or bundle design, weights, and loading plan with the supplier before ordering.
Shipping Routes & Exit Ports: Include your destination and requested Incoterm. The feasible origin port, route, and freight terms are confirmed in the current offer.
Lead Time & Dispatch: Ask for a dated production, packing, and dispatch schedule. Timing depends on the confirmed producer and order specification.
B2B Quotation Workflow: All industrial procurement is quoted offline based on specific dimension schedules, custom processing, and current ocean freight rates. Add items to your RFQ drawer or submit technical drawings for an itemized Proforma Invoice (PI).
Aluminum Curtain Wall FramingLME+1000$ - LME+2500$
